Λεπτομέρειες:
|
| Ονομασία: | WS C2960L 8TS LL | Σχήμα: | WS C2960L 8TS LL Καταλύτης 2960-L |
|---|---|---|---|
| IOS: | LAN lite | Διεπαφές ανερχόμενων ζεύξεων: | 2 x 1G SFP |
| Εγγύηση: | 1 έτος | ΕΠΙΤΡΟΠΗ: | DHL&FeDex |
| Χωρίς ανεμιστήρα: | Y | Φλας μνήμη: | 256 ΜΒ |
| Πληρωμή: | TT/Paypal | ||
| Επισημαίνω: | στρώμα 2 WS C2960L 8TS LL,WS C2960L 8TS LL,υποκαταστήματα |
||
WS-C2960L-8TS-LL offering 8 x GigE ports, 2 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.

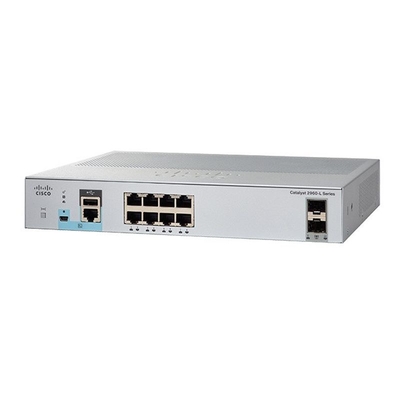

Figure 1 shows the appearance of WS-C2960L-8TS-LL.
Table 1 shows the Quick Specs.
| Product Code | WS-C2960L-8TS-LL |
| IOS | LAN Lite |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| 10/100/1000 Ethernet Ports | 8 |
| Uplink Interfaces | 2 x 1G SFP |
| Fanless | Y |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Dimensions (H x D x W) | 1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm) |
| Net Weight | 4.45 lb (2.02 kg) |
Figure 2 shows the front panel of WS-C2960L-8TS-LL.
Note:
| ① | Mode button | ⑤ | SFP module slots |
| ② | USB mini-Type B (console) port | ⑥ | USB Type A port |
| ③ | RJ-45 Console Port | ⑦ | System LEDs |
| ④ | 8 x 10/100/1000 ports |
