Quick Specs
| Item |
Description |
| Product Type |
Fiber Optic Patch Cable |
| Connector Type |
LC to LC Duplex |
| Fiber Mode |
Multimode (MM) |
| Cable Length |
50 meters |
| Structure |
Dual Fiber (Duplex) |
| Application |
Data Center / LAN |
| Jacket Material |
PVC / LSZH (optional) |
| Performance |
Low loss, high stability |
Product Parameters
| Parameter |
Specification |
| Model Number |
473304A FUFBB |
| Fiber Type |
Multimode OM3/OM4 compatible |
| Connector Polish |
UPC / APC optional |
| Connector End |
LC-LC Duplex |
| Insertion Loss |
≤ 0.3 dB (typical) |
| Return Loss |
≥ 35 dB |
| Cable Diameter |
2.0mm / 3.0mm optional |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Durability |
≥ 1000 mating cycles |
| Compliance |
IEC, RoHS compliant |
Product Overview

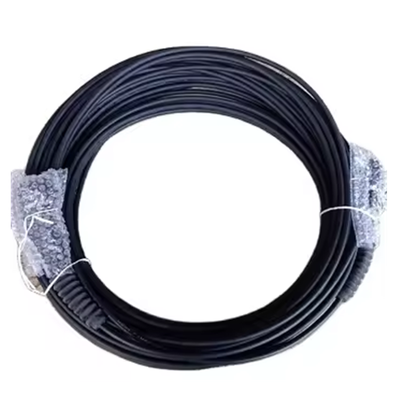

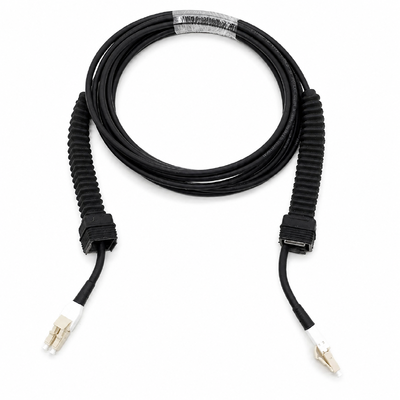

The 473304A FUFBB MM OD Fiber Optic LC-LC Duplex Patch Cable 50m is a high-performance multimode fiber jumper designed for modern data communication networks. It provides stable and low-loss optical transmission, making it ideal for high-speed backbone connections in data centers, enterprise LANs, and telecom environments.
Built with precision-polished LC connectors, this fiber cable ensures excellent repeatability and low insertion loss, helping maintain signal integrity over long distances. The duplex structure allows simultaneous bi-directional transmission, improving network efficiency and reducing deployment complexity.
With support for OM3/OM4 multimode standards, this 50-meter fiber patch cable is optimized for high bandwidth applications such as 10G/40G/100G Ethernet links in structured cabling systems.
Key Features
- High-quality LC-LC duplex connectors
- Low insertion loss & high return loss performance
- Stable transmission for high-speed networks
- Durable jacket for long-term deployment
- Supports high-density data center cabling
- RoHS compliant and environmentally friendly
Applications
- Data center interconnects
- Enterprise LAN backbone
- Telecom switching systems
- Server to switch connections
- Storage area networks (SAN)
SEO
Q1: What is the difference between single-mode and multimode fiber cable?
A: Multimode fiber (MM) is designed for short-distance, high-speed data transmission within data centers, while single-mode is used for long-distance communication.
Q2: Can this LC-LC fiber cable support 10G or 40G networks?
A: Yes, when used with OM3 or OM4 multimode infrastructure, it supports 10G, 40G, and even 100G short-range transmission.
Q3: Is this fiber cable compatible with Cisco or Huawei equipment?
A: Yes, LC-LC duplex fiber patch cables are widely compatible with Cisco, Huawei, Juniper, and other networking devices.
Q4: What is your warranty and after-sales service?
A: Typically, the product comes with a 1-year warranty. Technical support and replacement services are available depending on order terms.
Q5: Can I customize cable length or jacket type?
A: Yes, custom lengths, LSZH jackets, and connector polishing options are available for bulk orders.
